Client Background
The Client: An established B2B SaaS platform providing workflow automation tools specifically designed for digital marketing agencies and consultancies.
The Context: The platform allows agencies to manage projects, manage customers, onboard clients, and track their agency performance.
The Problem: Despite handling the majority of their workflow on the platform, users faced a critical disconnect when finalizing contracts, forcing them to switch to external tools. The objective was to eliminate this friction by integrating a proprietary e-signature module, centralizing the entire agency workflow into a single interface.
Business Objective
The goal was to build a fully integrated, legally binding E-Signature module ("eSign") within the existing ecosystem to increase user retention and platform stickiness.
Key Technical Requirements:
Seamless Integration: A Drag-and-Drop editor enabling users to place signature fields, text inputs, and dates on any uploaded PDF.
Security: Secure storage of documents and audit trails (IP address, timestamps).
Asynchronous Workflow: Automated email triggers via SendGrid for signing requests and final document delivery.
Performance: High-fidelity PDF regeneration without rasterization (pixelation) issues.
Technical Solution

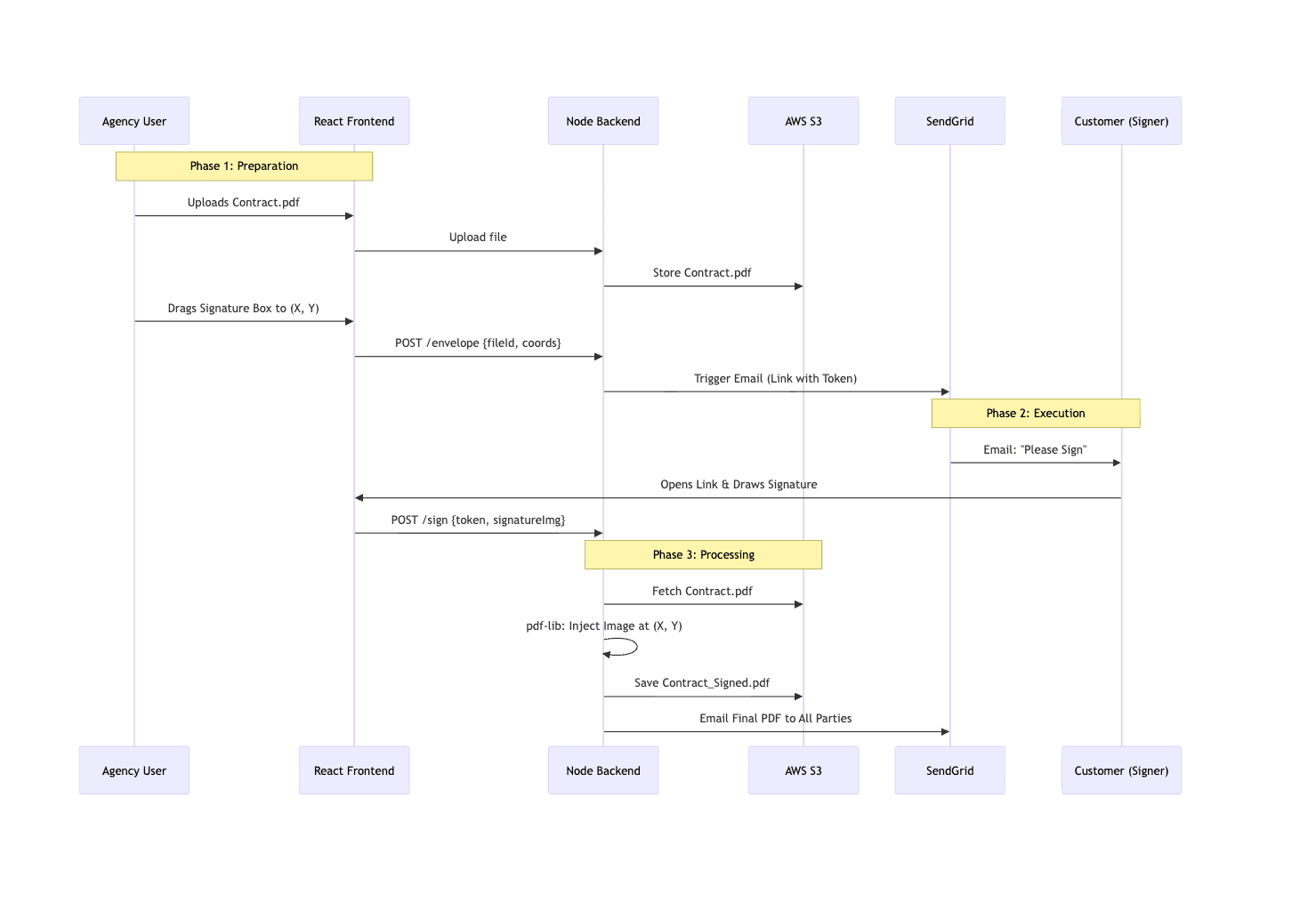

High-Level Architecture
We utilized a decoupled architecture. The frontend handles the visual placement of coordinates, while the backend handles the cryptographic manipulation of the PDF buffer.
Tech Stack:
Frontend: React.js, react-dnd (Drag and Drop), react-pdf (Viewer).
Backend: Node.js (Express), pdf-lib (PDF manipulation), AWS S3 (Storage).
Communication: SendGrid API (Transactional Emails).
Phase 1: The Document Editor (Frontend)
Instead of converting the PDF to images (which results in large files and non-selectable text), we rendered the PDF in the browser using pdf.js. We then overlaid a transparent HTML5 canvas layer using React-DnD.

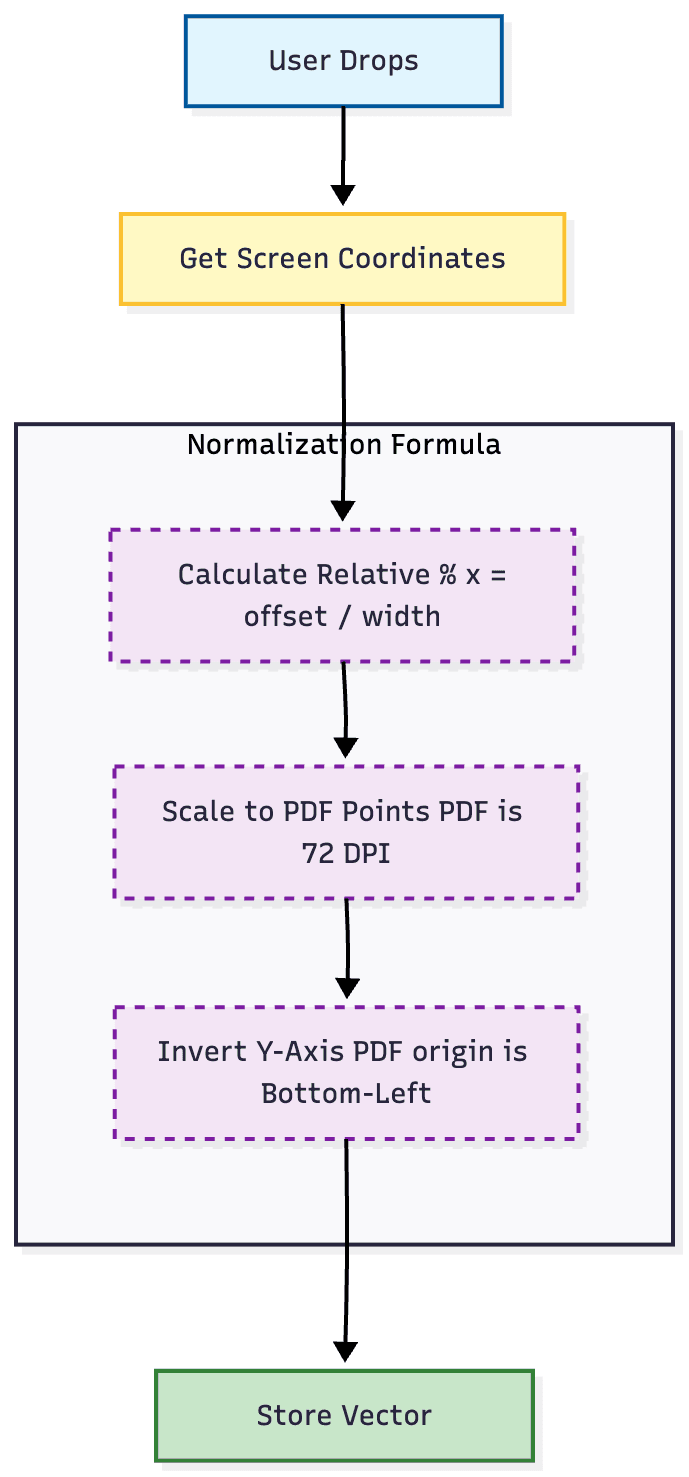

When a user drops a "Signature Box" onto the document, we don't alter the PDF yet. We calculate the coordinates relative to the viewport and normalize them to the PDF's point system.

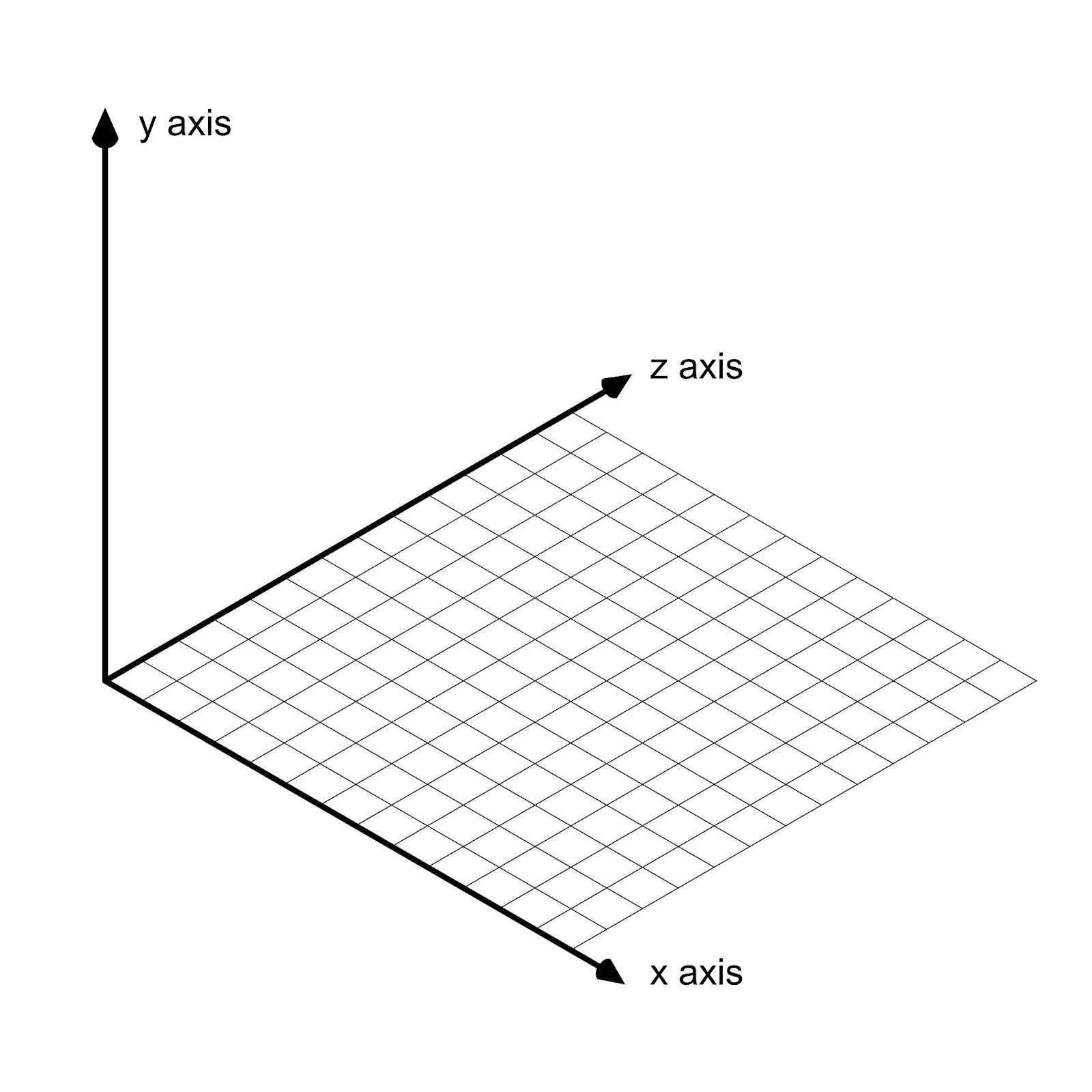

The Coordinate Challenge:
$$X_{pdf} = X_{screen} \times (\frac{W_{pdf}}{W_{screen}})$$
$$Y_{pdf} = Y_{screen} \times (\frac{H_{pdf}}{H_{screen}})$$
Where $W$ is width and $H$ is height.
Code Snippet: Tracking Drop Coordinates (React)
import { useDrop } from 'react-dnd';
const PDFPageOverlay = ({ pageDimensions, onDropItem }) => {
const [, drop] = useDrop({
accept: 'FIELD_TYPE',
drop: (item, monitor) => {
const delta = monitor.getClientOffset();
const pdfOffset = monitor.getSourceClientOffset();
const relativeX = (pdfOffset.x / pageDimensions.width) * 100;
const relativeY = (pdfOffset.y / pageDimensions.height) * 100;
onDropItem({ x: relativeX, y: relativeY, type: item.type });
},
});
return <div ref={drop} className="overlay-layer" />;
};
import { useDrop } from 'react-dnd';
const PDFPageOverlay = ({ pageDimensions, onDropItem }) => {
const [, drop] = useDrop({
accept: 'FIELD_TYPE',
drop: (item, monitor) => {
const delta = monitor.getClientOffset();
const pdfOffset = monitor.getSourceClientOffset();
const relativeX = (pdfOffset.x / pageDimensions.width) * 100;
const relativeY = (pdfOffset.y / pageDimensions.height) * 100;
onDropItem({ x: relativeX, y: relativeY, type: item.type });
},
});
return <div ref={drop} className="overlay-layer" />;
};
import { useDrop } from 'react-dnd';
const PDFPageOverlay = ({ pageDimensions, onDropItem }) => {
const [, drop] = useDrop({
accept: 'FIELD_TYPE',
drop: (item, monitor) => {
const delta = monitor.getClientOffset();
const pdfOffset = monitor.getSourceClientOffset();
const relativeX = (pdfOffset.x / pageDimensions.width) * 100;
const relativeY = (pdfOffset.y / pageDimensions.height) * 100;
onDropItem({ x: relativeX, y: relativeY, type: item.type });
},
});
return <div ref={drop} className="overlay-layer" />;
};
import { useDrop } from 'react-dnd';
const PDFPageOverlay = ({ pageDimensions, onDropItem }) => {
const [, drop] = useDrop({
accept: 'FIELD_TYPE',
drop: (item, monitor) => {
const delta = monitor.getClientOffset();
const pdfOffset = monitor.getSourceClientOffset();
const relativeX = (pdfOffset.x / pageDimensions.width) * 100;
const relativeY = (pdfOffset.y / pageDimensions.height) * 100;
onDropItem({ x: relativeX, y: relativeY, type: item.type });
},
});
return <div ref={drop} className="overlay-layer" />;
};
Phase 2: The Signing Flow & Backend Processing
Once the document is prepared, the backend creates a database entry for the "Envelope" containing the S3 key of the original PDF and the JSON array of field coordinates.
Trigger: An email is sent via SendGrid with a unique, signed URL token.
Action: The recipient opens the link, draws their signature on an HTML Canvas, or types it (converted to a font-based SVG).
Processing: Upon submission, the Node.js backend pulls the original PDF from S3.
Phase 3: PDF Reconstruction (The Core Logic)
This is the most critical part of engineering. We use pdf-lib to load the binary data of the PDF and inject the signature PNG/SVG at the calculated coordinates.
Why this approach?
Performance: Modifying the PDF structure is faster than image processing.
Quality: The original text remains vector-based (zoomable without blur).
Code Snippet: Backend PDF Injection (Node.js)
import { PDFDocument } from 'pdf-lib';
import fetch from 'node-fetch';
async function sealDocument(originalPdfUrl, signatureImageBuffer, coordinates) {
const existingPdfBytes = await fetch(originalPdfUrl).then(res => res.arrayBuffer());
const pdfDoc = await PDFDocument.load(existingPdfBytes);
const signatureImage = await pdfDoc.embedPng(signatureImageBuffer);
const pages = pdfDoc.getPages();
const currPage = pages[coordinates.pageNumber - 1];
const { width, height } = currPage.getSize();
currPage.drawImage(signatureImage, {
x: coordinates.x,
y: height - coordinates.y - 50,
width: 150,
height: 50,
});
const pdfBytes = await pdfDoc.save();
return pdfBytes;
}
import { PDFDocument } from 'pdf-lib';
import fetch from 'node-fetch';
async function sealDocument(originalPdfUrl, signatureImageBuffer, coordinates) {
const existingPdfBytes = await fetch(originalPdfUrl).then(res => res.arrayBuffer());
const pdfDoc = await PDFDocument.load(existingPdfBytes);
const signatureImage = await pdfDoc.embedPng(signatureImageBuffer);
const pages = pdfDoc.getPages();
const currPage = pages[coordinates.pageNumber - 1];
const { width, height } = currPage.getSize();
currPage.drawImage(signatureImage, {
x: coordinates.x,
y: height - coordinates.y - 50,
width: 150,
height: 50,
});
const pdfBytes = await pdfDoc.save();
return pdfBytes;
}
import { PDFDocument } from 'pdf-lib';
import fetch from 'node-fetch';
async function sealDocument(originalPdfUrl, signatureImageBuffer, coordinates) {
const existingPdfBytes = await fetch(originalPdfUrl).then(res => res.arrayBuffer());
const pdfDoc = await PDFDocument.load(existingPdfBytes);
const signatureImage = await pdfDoc.embedPng(signatureImageBuffer);
const pages = pdfDoc.getPages();
const currPage = pages[coordinates.pageNumber - 1];
const { width, height } = currPage.getSize();
currPage.drawImage(signatureImage, {
x: coordinates.x,
y: height - coordinates.y - 50,
width: 150,
height: 50,
});
const pdfBytes = await pdfDoc.save();
return pdfBytes;
}
import { PDFDocument } from 'pdf-lib';
import fetch from 'node-fetch';
async function sealDocument(originalPdfUrl, signatureImageBuffer, coordinates) {
const existingPdfBytes = await fetch(originalPdfUrl).then(res => res.arrayBuffer());
const pdfDoc = await PDFDocument.load(existingPdfBytes);
const signatureImage = await pdfDoc.embedPng(signatureImageBuffer);
const pages = pdfDoc.getPages();
const currPage = pages[coordinates.pageNumber - 1];
const { width, height } = currPage.getSize();
currPage.drawImage(signatureImage, {
x: coordinates.x,
y: height - coordinates.y - 50,
width: 150,
height: 50,
});
const pdfBytes = await pdfDoc.save();
return pdfBytes;
}
Phase 4: Delivery
The final Buffer is uploaded to S3 as a new file (e.g., contract_signed_v1.pdf). A parallel job triggers SendGrid to send an email with the PDF attached to both the sender and the signer.
Outcome
The introduction of the native E-Signature module transformed the client's platform from a project management tool into a complete operational ecosystem.
User Efficiency: Reduced document turnaround time by 40% by eliminating the need to download/upload to third-party tools.
Cost Savings: Saved the client approx. $2.00 per document in API fees that were previously paid to external providers like DocuSign.
Technical Scalability: The vector-based PDF generation reduced final file sizes by 60% compared to the initial image-based prototype, resulting in faster email delivery and lower storage costs.
Future Improvements
Implement Websockets to show real-time status updates (e.g., "Client is viewing the document").
Add Blockchain hashing for an immutable audit trail of the signed document.
